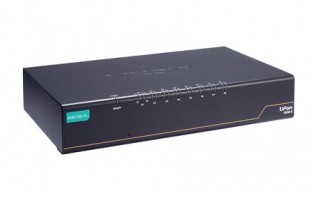

UPORT 1600-8-G2 SERIES
USB to 8-port RS-232 converter, 0 to 60°C operating temperature
USB 3.2 SuperSpeed capability
512-byte on-chip FIFO cache and flow control for enhanced performance
Drivers provided for a broad selection of operating systems, including Windows and Linux
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
Cascading of up to 32 ports without requiring additional power adaptors
Latching USB cable design for firmer connection
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Serial port with 2 kV isolation protection (for “-I” models)
512-byte on-chip FIFO cache and flow control for enhanced performance
Drivers provided for a broad selection of operating systems, including Windows and Linux
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
Cascading of up to 32 ports without requiring additional power adaptors
Latching USB cable design for firmer connection
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Serial port with 2 kV isolation protection (for “-I” models)
USB Interface
- USB Standards: USB 3.2 Gen 1 USB 1.1/2.0 compliant
- Speed: 5 Gbps, 480 Mbps, 12 Mbps
- No. of USB Ports: 1 x UFP for all models, and 3 additional DFP for UPort 1650-8-G2-Hub
- USB Connector: USB type B (UFP) for all models, and type A (DFP) for UPort 1650-8-G2-Hub
Serial Interface
- Connector: DB9 male
- No. of Ports: 8
- Serial Standards: RS-232: UPort 1610-8-G2 RS-232/422/485: All other models
- FIFO: 512 bytes
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Parity: None, Even, Odd, Space, Mark
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS, XON/XOFF
- RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Surge: 0.5 kV
- Isolation: 2 kV (I models)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Windows Drivers: Windows 11, 10, 8.1, 8, and 7Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
- Linux Drivers: Kernel 6.x, 5.x and 4.x
- Mac Drivers: macOS version (Intel 64): 13, 12, 11 and 10.1x
- Virtual Machine: VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4)Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
- Arm®-based Platform Support: Linux kernel 6.x, 5.x and 4.x
- Android API: Android 3.1.x and later
Power Parameters
- Input Voltage: 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor
- Input Current: 308 mA @ USB 2.0, 495 mA @ USB 3.2, 260 mA @ 12 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in)
- Weight: 650 g (1.43 lb)
- IP Rating: IP20
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF
- Safety: IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC
- Green Product: RoHS, CRoHS, WEEE
- Vibration: IEC 60068-2-6 IEC 60068-2-64
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-31
MTBF
- Standards: Telcordia Standard SR332, Telcordia Issue 2
- Time: 1,431,860 hrs
Declaration
- Green Product: RoHS, CRoHS, WEEE
