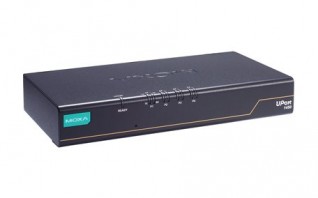

UPORT 1400-G2 SERIES
USB to 4-port RS-232 converter, 0 to 60°C operating temperature
USB 3.2 SuperSpeed capability
512-byte on-chip FIFO cache and flow control for enhanced performance
Drivers provided for a broad selection of operating systems, including Windows and Linux
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
Latching USB cable design for firmer connection
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Serial port with 2 kV isolation protection (for “-I” models)
512-byte on-chip FIFO cache and flow control for enhanced performance
Drivers provided for a broad selection of operating systems, including Windows and Linux
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
Latching USB cable design for firmer connection
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Serial port with 2 kV isolation protection (for “-I” models)
USB Interface
- USB Standards: USB 3.2 Gen 1 USB 1.1/2.0 compliant
- Speed: 5 Gbps, 480 Mbps, 12 Mbps
- No. of USB Ports: 1
- USB Connector: USB Type B
Serial Interface
- Connector: DB9 male
- No. of Ports: 4
- Serial Standards: RS-232
- FIFO: 512 bytes
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Parity: None, Even, Odd, Space, Mark
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS, XON/XOFF
- RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Surge: 0.5 kV
- Isolation: 2 kV (I models)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Windows Drivers: Windows 11, 10, 8.1, 8 and 7Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
- Linux Drivers: Kernel 6.x, 5.x and 4.x
- Mac Drivers: macOS version (Intel 64): 13, 12, 11 and 10.1x
- Virtual Machine: VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64)VMWare ESXi (Linux kernel 4)Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
- Arm®-based Platform Support: Linux kernel 6.x, 5.x and 4.x
- Android API: Android 3.1.x and later
Power Parameters
- Input Voltage: 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor
- Input Current: 183 mA @ USB 2.0370 mA @ USB 3.2200 mA @ 12 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in)
- Weight: 359 g (0.79 lb)
- IP Rating: IP20
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF
- Safety: IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC
- Green Product: RoHS, CRoHS, WEEE
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6 IEC 60068-2-64
- Freefall: IEC 60068-2-31
MTBF
- Standards: Telcordia Standard SR332, Telcordia Issue 2
- Time: 1,846,458 hrs
Declaration
- Green Product: RoHS, CRoHS, WEEE
