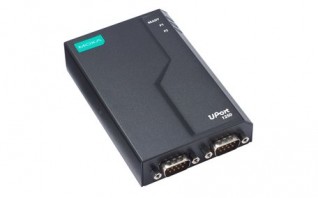

UPORT 1200-G2 SERIES

2-port RS-232/422/485 USB-to-serial converter, 0 to 60°C operating temperature
uport-1200-g2-series
USB 3.2 SuperSpeed capability
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
512-byte on-chip FIFO cache and flow control for enhanced performance
Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
Drivers provided for a broad selection of operating systems, including Windows and Linux
Latching USB cable design for firmer connection
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Serial port with 2 kV isolation protection (for “-I” models)

USB Interface

  • USB Standards: USB 3.2 Gen 1 USB 1.1/2.0 compliant
  • Speed: 5 Gbps, 480 Mbps, 12 Mbps
  • No. of USB Ports: 1
  • USB Connector: USB Type B

Serial Interface

  • Connector: DB9 male
  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • FIFO: 512 bytes
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Flow Control: RTS/CTS, XON/XOFF
  • RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
  • Surge: 0.5 kV
  • Isolation: 2 kV (I models)
  • Serial Standards: RS-232/422/485
  • No. of Ports: 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Serial Software Features

  • Windows Drivers: Windows 11, 10, 8.1, 8 and 7Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
  • Linux Drivers: Kernel 6.x, 5.x and 4.x
  • Mac Drivers: macOS version (Intel 64): 13, 12, 11 and 10.1x
  • Virtual Machine: VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4)Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
  • Arm®-based Platform Support: Linux kernel 6.x, 5.x and 4.x
  • Android API: Android 3.1.x and later

Power Parameters

  • Input Voltage: 5 VDC by USB bus power
  • Input Current: UPort 1250-G2 models320 mA @ USB 3160 mA @ USB 2UPort 1250I-G2 models:400 mA @ USB 3240 mA @ USB 2

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP20
  • Dimensions: 75.8 x 25.0 x 111.0 mm (2.98 x 0.98 x 4.37 in)
  • Weight: 259 g (0.57 lb)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature: -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF
  • Safety: IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC
  • Freefall: IEC 60068-2-31
  • Vibration: IEC 60068-2-6 IEC 60068-2-64
  • Shock: IEC 60068-2-27

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Standards: Telcordia Standard SR332
  • Time: 2,142,392 hrs

Available Models

Model No. Description Quantity
UPort 1250-G2-T 2-port RS-232/422/485 USB-to-serial converter, -40 to 75°C operating temperature
UPort 1250-G2 2-port RS-232/422/485 USB-to-serial converter, 0 to 60°C operating temperature
UPort 1250I-G2 2-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection, 0 to 60°C operating temperature
UPort 1250I-G2-T 2-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection, -40 to 75°C operating temperature
