Transmits data up to 2 km over optical fiber
Converts CAN signals to fiber and fiber to CAN signals
Baudrate up to 1 Mbps
Dual power inputs for redundancy
DIP switch for 120 ohm terminal resistance
DIP switch for fiber test mode
LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2
Wide-temperature model available for -40 to 85°C environments
Fully compatible with the ISO 11898 standard

Serial Interface

• Optical Fiber: Dispersion Penalty (dB)
• Optical Fiber: Read more
• Optical Fiber: Low-Speed Fiber Module
• Optical Fiber: Multi-Mode
• Optical Fiber: Fiber Cable Requirements
• Optical Fiber: 50/125 µm, 800 MHz
• Optical Fiber: 62.5/125 µm, 500 MHz
• Optical Fiber: Typical Distance
• Optical Fiber: 5 km
• Optical Fiber: Wavelength
• Optical Fiber: Typical (nm)
• Optical Fiber: 850
• Optical Fiber: TX Range (nm)
• Optical Fiber: 840 to 860
• Optical Fiber: RX Range (nm)
• Optical Fiber: 800 to 900
• Optical Fiber: Optical Power
• Optical Fiber: TX Range (dBm)
• Optical Fiber: 0 to -5
• Optical Fiber: RX Range (dBm)
• Optical Fiber: 0 to -20
• Optical Fiber: Link Budget (dB)
• Optical Fiber: 15
• Optical Fiber: Dispersion Penalty (dB)
• Optical Fiber: 1

CAN Interface

• Isolation: 2 kV (built-in)
• No. of Ports: 1
• Signals: CAN_L, CAN_H, CAN Signal GND
• Terminator: N/A, 120 ohms (by DIP)

Power Parameters

• Input Current: 221 mA @ 12 to 48 VDC
• Power Consumption: 221 mA @ 12 to 48 VDC
• Input Voltage: 12 to 48 VDC
• No. of Power Inputs: 2
• Overload Current Protection: Supported
• Power Connector: Terminal block (for DC models)

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
• Weight: 178 g (0.39 lb)
• Installation: DIN-rail mounting

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: EN 62368-1, UL 508
• Vibration: IEC 60068-2-6

MTBF

• Time: 792,085 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity

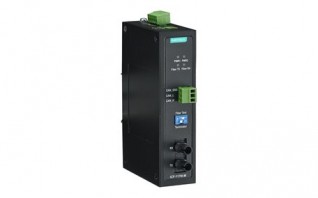

ICF-1170I-M-ST-T	CANbus to fiber converter, multi-mode, ST connector, -40 to 85°C operating temperature
ICF-1170I-M-ST	CANbus to fiber converter, multi-mode, ST connector, 0 to 60°C operating temperature
