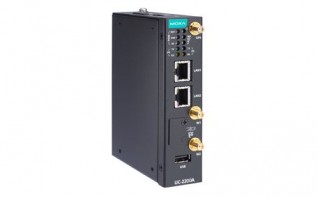

UC-2200A SERIES

Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10) , -40 to 75°C operating temperature
uc-2200a-series
Armv8 Cortex-A53 dual-core 1 GHz processor
2 auto-sensing 10/100/1000 Mbps Ethernet ports
Rich programmable LEDs and a programmable button for easy installation and maintenance
LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
-40 to 70°C operating temperature range
Long-term Linux support until 2031; includes bug fixes and security patches

Computer

  • CPU: Armv8 Cortex-A53 dual-core 1GHz
  • DRAM: 2 GB DDR4
  • Pre-installed OS: Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOLSee www.moxa.com/MIL
  • Storage Pre-installed: 16 GB eMMC
  • Storage Slot: micro SD slots x 1

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (terminal block)
  • USB 2.0: USB 2.0 hosts x 1, type-A connectors
  • Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
  • Expansion Slots: mPCIe slots x 1
  • Number of SIMs: 1
  • SIM Format: Nano
  • Buttons: Reset button
  • TPM: TPM v2.0

Ethernet Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

  • Baudrate: 300 bps to 921.6 kbps
  • Data Bits: 5, 6, 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Cellular Interface

  • Cellular Standards: LTE Cat. 4

GPS Interface

  • Receiver Types: GPS, GLONASS, Galileo
  • Accuracy: Position: 2.0 m @CEP50
  • Acquisition: Hot starts: 1.1 sec Cold starts: 29.94 sec
  • Sensitivity: Cold starts: -145 dBm Tracking: -160 dBm
  • Time Pulse: 250 Hz to 10 MHz

LED Indicators

  • System: Power x 1 SW ready (programmable) USB (programmable) x 1 micro SD slot (programmable) x 1 Serial Port: TX x 2, RX x 2
  • Wireless Signal Strength: Cellular x 2, programmable Disconnected: NoneVery Poor Signal: 1 LED (blinking)Poor Signal: 1 LEDGood Signal: 2 LEDs

Power Parameters

  • Input Current: 600 mA @ 12 VDC300 mA @ 24 VDC
  • Input Voltage: 12 to 24 VDC
  • Power Consumption: 4.5 W (without external USB device) 7.2 W (with external USB device)

Reliability

  • Alert Tools: External RTC (real-time clock)
  • Automatic Reboot Trigger: External WDT (watchdog timer)

Physical Characteristics

  • Dimensions: 102 x 32 x 128 mm (4.20 x 1.26 x 5.04 in)
  • Weight: 546 g (1.2 lb)
  • Housing: SECC Metal
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 80°C (-40 to 176°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Shock: IEC 60068-2-27
  • Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

Standards and Certifications

  • EMC: EN 55032/35 EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Safety: EN 62368-1 UL 62368-1
  • International Approval: RCM KC BSMI NCC
  • Green Product: RoHS, CRoHS, WEEE
  • Hazardous Locations: ATEX Class I Division 2

MTBF

  • Time: 924,676 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
UC-2222A-T-AP Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot with LTE Cat. 4 module for the Asia-Pacific region preinstalled, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 70°C operating temperature
UC-2222A-T-CN Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot for wireless module, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 70°C operating temperature
UC-2222A-T-EU Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot with LTE Cat. 4 module for the European region preinstalled, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 70°C operating temperature
UC-2222A-T Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10) , -40 to 75°C operating temperature
UC-2222A-T-US Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot with LTE Cat. 4 module for the U.S. region preinstalled, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 70°C operating temperature
