Technolec

A-SA-NFNF-02 SERIES

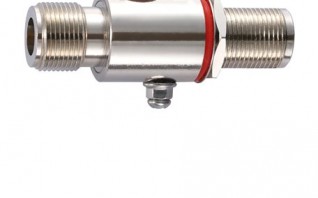

0 to 6 GHz, N-type (female) to N-type (female) surge arrester
a-sa-nfnf-02-series
N-type connector

Physical Characteristics

  • Frequency: 0 to 6 GHz
  • Insertion Loss: 0.5 dB (max.)
  • DC Breakdown Voltage: 230 V ± 20% @ 100 V/S
  • Surge Discharge Current: 10 kA @ 8/20 μs
  • Initial Insulation Resistance: ≥ 1000 mΩ
  • Electrode Capacitance: 1.5 P

Warranty

  • Warranty Period: 1 year
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
A-SA-NFNF-02 0 to 6 GHz, N-type (female) to N-type (female) surge arrester
