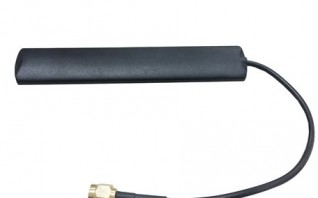

ANT-5G-OSM-03 SERIES
3 dBi LTE/5G NR omnidirectional adhesive antenna, 1 m cable
Supports all global 5G bands
Lightweight
1 m, 1.5 m, 2 m options available
Flexible installation
SMA connector (male) supported
Lightweight
1 m, 1.5 m, 2 m options available
Flexible installation
SMA connector (male) supported
Antenna Characteristics
- Frequency: 617 to 960 MHz 1452 to 2690 MHz 3300 to 5850 MHz 5850 to 7150 MHz
- Antenna Type: Omni-directional
- Typical Antenna Gain: 1.5 dBi @ 617 to 960 MHz 4 dBi @ 1452 to 2690 MHz 4 dBi @ 3300 to 5850 MHz 4 dBi @ 5850 to 7150 MHz
- Connector: SMA (male)
- Impedance: 50 ohms
- Polarization: Vertical Linear
- V.S.W.R.: ≤ 2.5 @ 617 to 960 MHz ≤ 2.0 @ 1452 to 2690 MHz≤ 2.0 @ 3300 to 5850 MHz≤ 2.5 @ 5850 to 7150 MHz
Physical Characteristics
- Weight: 24 g (0.05 lb)
- Dimensions: 110 x 20 x 5.4 mm (4.33 x 0.79 x 0.21 in)
- Radome Color: Black
- Radome Material: Plastic
- Cable: RG-174
- Cable Length: 1 m
- Installation: Adhesive mount
Environmental Limits
- Operating Temperature: -30 to 70°C (-22 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
