HDR POWER SUPPLY SERIES

60 W/2.5 A DIN-rail 24 VDC power supply, universal 85 to 264 VAC or 120 to 370 VDC input voltage, -30 to 70°C operating temperature
hdr-power-supply-series

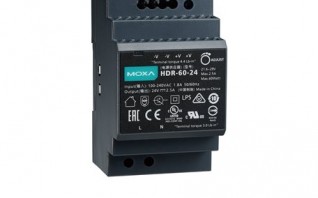

DIN-rail mounted power supply
Slim form factor that is ideal for cabinet installation
Universal AC power input
High power conversion efficiency

Output Power Parameters

  • Wattage: 60 W
  • Voltage: 24 VDC
  • Current Rating: 0 to 2.5 A
  • Ripple and Noise: 150 mVp-p
  • Voltage Adjustment Range: 21.6 to 29 VDC
  • Setup/Rise Time at Full Load: 500 ms, 50 ms at 230 VAC 500 ms, 50 ms at 115 VAC
  • Typical Hold Up Time at Full Load: 30 ms at 230 VAC 12 ms at 115 VAC

Input Power Parameters

  • Voltage Range: 100 to 240 VAC (50 to 60 Hz) 120 to 370 VDC
  • Typical Efficiency: 90%
  • Typical Current: 0.8 A @ 230 VAC, 1.2 A @ 115 VAC
  • Inrush Current (cold start): 60 A @ 230 VAC, 30 A @ 115 VAC

Overload Protection

  • Rated Output Power: 105 to 160%
  • Protection Type: Constant current limiting, recovers automatically after fault condition is removed

Overvoltage Protection

  • Over-Voltage Range: 30 to 36 V
  • Protection Type: Shut down operating voltage, repower on to recover
  • Overvoltage Range: 30 to 36 V

Physical Characteristics

  • Housing: Plastic
  • Dimensions: 52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)
  • Weight: 230 g (0.5 lb)

Environmental Limits

  • Operating Temperature: -30 to 70°C (-22 to 158°F)
  • Storage Temperature: -40 to 85°C (-40 to 167°F)
  • Max. Operating Temperature at Full Load: 45°C (113°F)
  • Ambient Relative Humidity: 20 to 90% (non-condensing)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Standards and Certifications

  • Safety: UL 508 EN 62368-1 UL 62368-1 IEC 62368-1
  • EMC: EN 55032/35 EN 61000-3-2 Class A EN 61000-3-3 EN IEC 61204-3 EN IEC 61000-6-2
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 4 kV IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms IEC 61000-4-8 PFMF: 30 A/m IEC 61000-4-11

MTBF

  • Time: 927,560 hrs
  • Standards: MIL-HDBK-217F

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
HDR-60-24 60 W/2.5 A DIN-rail 24 VDC power supply, universal 85 to 264 VAC or 120 to 370 VDC input voltage, -30 to 70°C operating temperature
