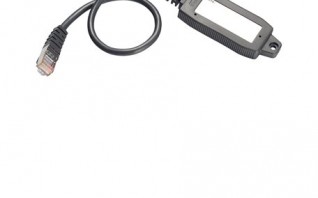

ABC-01 SERIES

Configuration backup and restoration tool for managed Ethernet switches and AWK Series wireless APs/bridges/clients, 0 to 60°C operating temperature
abc-01-series
Rugged, reliable design
RS-232 RJ45 console port connection
Load the system configuration automatically after system reboot
Supports Moxa's managed Ethernet switches and wireless APs/bridges/clients products
Plug-and-Play system configuration backup and restoration

Interface

  • Connector: RJ45

Basic Operation

  • Storage Capacity: 128 KB Flash

Power Parameters

  • Input Voltage: 3 to 5 VDC (through the RS-232 port's RTS signal)

Physical Characteristics

  • Housing: PVC molding
  • IP Rating: IP40
  • Dimensions: 32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
  • Weight: 50 g (0.11 lb)
  • Installation: M4 screws (
  • Cable Length: 35±3 cm (including connector)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032 Class A
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
ABC-01 Configuration backup and restoration tool for managed Ethernet switches and AWK Series wireless APs/bridges/clients, 0 to 60°C operating temperature
